商品の詳細:
|
| フレーム: | 亜鉛メッキ/アルミニウム | 仕切り: | ホットメルト接着剤 |
|---|---|---|---|
| 応用: | AHU、HEPAフィルターボックス、ファンフィルターユニット、クリーンルームターミナル濾過 | 初期抵抗: | 200Pa未満 |
| 別名: | クリーンルームターミナル濾過ユニット | 厚さ: | 69/78/150/220 |
| サイズ: | 1175×575×69mm | Faceguard: | ダイヤモンド型金属保護ネット |
| ハイライト: | 1175x575x69mm Size HEPA Air Filter,Less Than 200 Pa Initial Resistance HEPA Air Filter,Corrosion Resistance HEPA Air Filter |
||
High-performance air filtration solution featuring PU EVA material gel sealant gasket for superior air filtration in demanding environments.

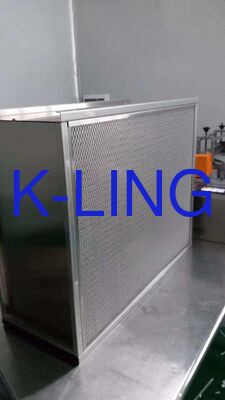

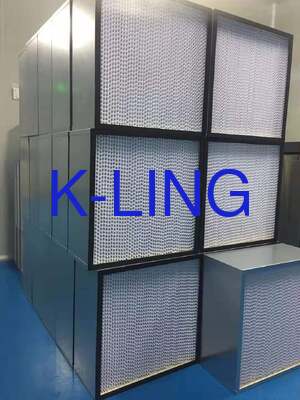

The Mini-Pleated HEPA Filter is engineered to provide exceptional air quality in HVAC systems, clean rooms, laboratories, and other environments requiring superior air purity. Measuring 1175x575x69mm, its compact design offers optimal performance where space is limited but clean air is critical.
| Parameter | Specification |
|---|---|
| Size | 1175x575x69mm OR 1220X610X69mm /610X610X69mm |
| Frame | Galvanized/aluminum |
| Filtering Media | Glassfibre Media |
| Filter Particles | ≥ 0.3µm |
| Initial Resistance | Less Than 200 Pa |
| Partition | Hot Melt Adhesive |
| Efficiency | H13-U15 |
| Gasket | PU / EVA Material / Gel Sealant |
| Thickness | 69 / 78 / 150 / 220 mm |
| Other Name | Cleanroom Terminal Filtration Unit H13 |
Protects sensitive experiments from cross-contamination. Customizable sizes fit diverse fume hoods and biosafety cabinets.
Guards server integrity from corrosive particles. Filters with epoxy-coated guard nets withstand humidity fluctuations in cooling systems.
Contains radioactive particulates. Specialized models use radiation-resistant materials and undergo stringent leak testing.
KELING offers flexible customization services with:
Choose KELING's HEPA filter with clapboard for superior air filtration performance and reliable service.
