商品の詳細:
|
| 気流: | 単方向か非単方向 | トランスポートパッケージ: | 合板のパッキング |
|---|---|---|---|
| ノイズレベル: | 65dB未満 | フレーム: | 粉体塗装鋼またはステンレス鋼304 |
| 吊り天井: | ファンフィルターユニット/HEPAユニット | 空気ろ過システム: | HEPAフィルターとパーフィルター |
| 清潔さ: | ISO5 / ISO6 / ISO7 | 外部サイズ: | 6000×9000×3596mm |
| ハイライト: | modular clean room installation,temperature control clean room,humidify control softwall clean room |
||
Achievable High Cleanliness Classes: Capable of meeting stringent ISO Class 1 through ISO Class 8 cleanliness standards (or equivalent Fed 209E classes) through proper design of airflow, filtration, and pressurization.
Controlled Airflow Patterns: Engineered to establish and maintain unidirectional (laminar) or non-unidirectional (turbulent) airflow patterns critical for contaminant removal, using strategically placed FFUs or central air handling units (AHUs).
Effective Filtration: Relies on High-Efficiency Particulate Air (HEPA) or Ultra-Low Penetration Air (ULPA) filters integrated into the ceiling grid (FFUs) or supply plenums to remove airborne particles.
Maintained Pressure Differentials: Designed to create and sustain positive or negative pressure gradients between adjacent cleanroom zones and surrounding areas to prevent cross-contamination, facilitated by airtight construction and controlled air supply/exhaust.
Temperature & Humidity Control: HVAC systems (integrated within modules or external) provide precise control over temperature and relative humidity, essential for many sensitive processes.
| Application | Cleanroom, Laboratory, Pharmaceutical, Electronics, Etc. |
|---|---|
| Air condition | 5P Temperature And Humidify Control |
| Wall Material | Organic Glass |
| Floor | Anti-static PVC Floor |
| Windspeed | 0.45m/s For Cleanroom |
| Air Flow | Unidirectional Or Non-unidirectional |
| Frame | Powder Coated Steel Or Stainless Steel304 |
| Transport Package | Plywood Packing |
| Installation | Modular Installation |
| Air Filtration System | HEPA Filter And Prefilter |

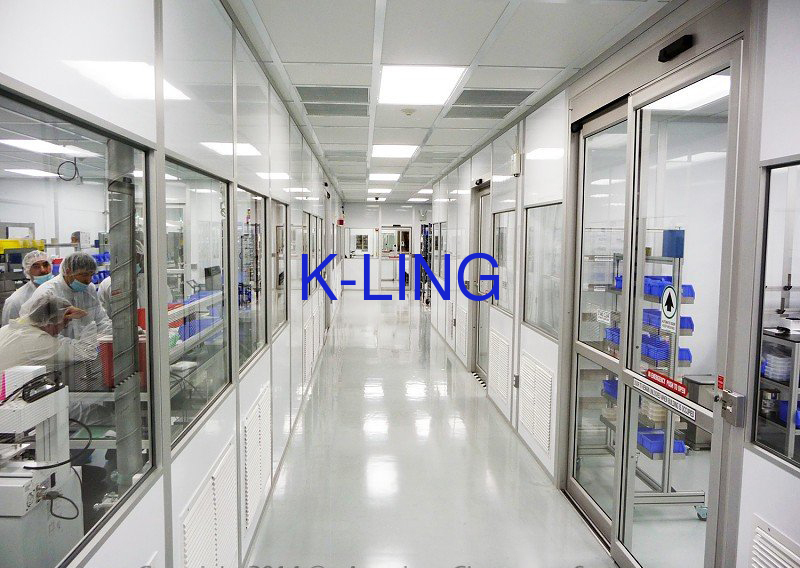

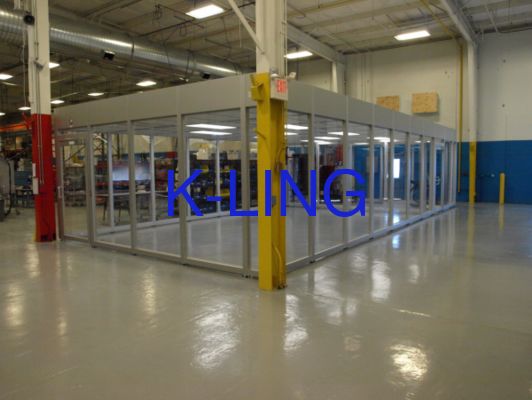

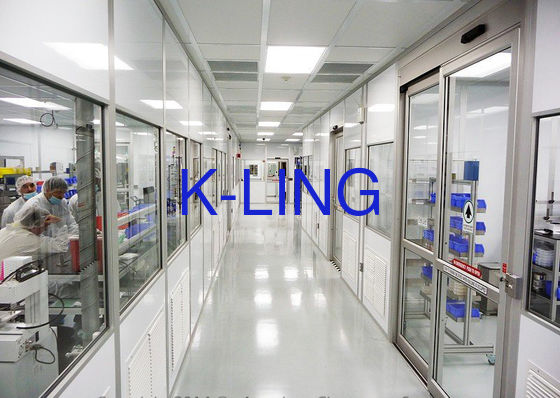

K-LING modular Clean Room (Model: KEL-LFB) is a versatile and efficient solution for a wide range of Product Application Occasions and Scenarios. This cleanroom product, originating from CHINA, is CE certified and is suitable for various industries requiring a controlled environment.
One of the key applications for the K-LING modular Clean Room is in Clean Sheds, where a controlled environment is necessary for activities such as precision manufacturing, laboratory work, and research processes. The laminar flow cleanroom design of this product ensures a consistent airflow to maintain cleanliness and sterility.
Furthermore, the KEL-LFB model is ideal for Clean Booth setups in industries such as pharmaceuticals, electronics, and biotechnology. The modular installation feature allows for easy setup and customization according to specific requirements. The noise level of less than 65 dB ensures a quiet working environment, suitable for sensitive operations.
