商品の詳細:
|
| 彼: | タッチスクリーン | PurificAitonランク: | ISO5 /クラス100 |
|---|---|---|---|
| フィルタリング ステップ: | H14+F8+G4 | 手術: | 自動または半自動 |
| 飛行速度: | 0.45m/s +_20％調整可能 | ドア: | PVCストリップCurtian |
| 圧力方法: | 否定 的 な 圧力 | アプリケーション: | 粉末の重量化 |
| ハイライト: | PLC control dispensing booth,pharmaceutical dispensing booth with polymer membrane,uniform airflow dispensing booth |
||

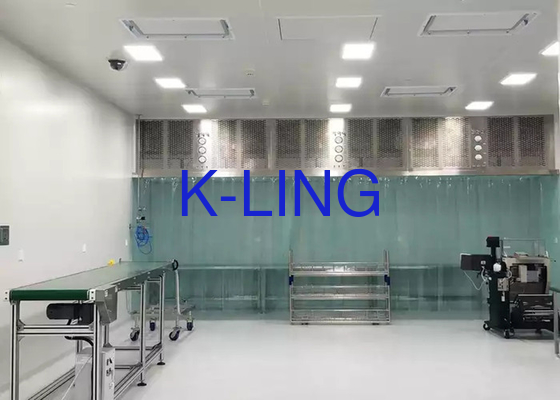

The Dispensing Booth is an essential piece of equipment designed for pharmaceutical factory sampling booths, weighing booths, and laminar flow booths. It provides a controlled environment for the safe handling of materials and substances, ensuring product quality and operator safety.
The air speed of the Dispensing Booth is set at 0.45m/s with an adjustable range of ±20%, allowing for precise control over the airflow within the booth. This feature is crucial for maintaining a clean and sterile environment, especially in pharmaceutical settings where contamination must be minimized.
Equipped with a Ceiling made of either Damping Film or a Diffuser Plate, the Dispensing Booth ensures uniform airflow distribution throughout the working area. This helps to create a laminar flow environment, reducing the risk of cross-contamination and ensuring the integrity of the materials being handled.
The Door of the Dispensing Booth is designed with a PVC Strip Curtain, providing easy access for operators while helping to contain the airflow within the booth. This feature contributes to maintaining the cleanliness and sterility of the working area, essential for pharmaceutical operations.
With options for both Automatic and Semi-automatic operation, the Dispensing Booth offers flexibility in use based on the specific requirements of the application. The Automatic operation mode allows for hands-free operation, ideal for continuous processes or when precise control over airflow is needed. On the other hand, the Semi-automatic mode provides manual control for greater operator involvement and customization.
Controlled by a PLC Control System, the Dispensing Booth ensures accurate and reliable operation. The PLC system enables precise monitoring and adjustment of parameters such as air speed, temperature, and pressure within the booth, enhancing overall performance and efficiency.
| Parameter | Specification |
|---|---|
| Ceiling | Damping Film Or Diffuser Plate |
| Other Name | Downflow Booth |
| HIM | Touch Screen |
| Air Speed | 0.45m/s +- 20% Adjustable |
| Application | Powder Weighting |
| Purification Rank | ISO5 / Class 100 |
| Name | Dispensing Booth / Sampling Booth |
| Door | PVC Strip Curtain |
| Filtration Step | H14+F8+G4 |
| Pressure Way | Negative Pressure |
Biosafety laboratories (BSL-3/BSL-4) conduct research on highly pathogenic microorganisms, and the weighing room in a cleanroom serves as a critical safety barrier. Monitoring its negative pressure environment ensures that indoor air does not leak out; for example, Ebola virus research laboratories achieve this by monitoring the efficiency of exhaust air systems.
During the weighing of pathogenic microbial cultures, high-efficiency air filtration systems capture contaminants and prevent aerosol dispersion. In emergency responses to incidents--such as a broken petri dish--air samplers can rapidly complete air sampling and, combined with detection methods, confirm whether any pathogens have leaked.
Additionally, protective measures in the weighing room--such as personnel wearing specialized protective equipment and materials being transferred via designated transfer devices--further reduce the risk of pathogen exposure, ensuring the safety of laboratory personnel and the stability of the experimental environment.
