商品の詳細:
|
| ドア: | PVCストリップCurtian | HEPAフィルター: | ミニプリーツタイプH14 |
|---|---|---|---|
| ノイズレベル: | ≤65dB | ファン: | 0.75kW 380V/480V 50/60Hz 3相 |
| PurificAitonランク: | ISO5 /クラス100 | 圧力方法: | 否定 的 な 圧力 |
| シーリング: | 減衰フィルムまたはディフューザープレート | フィルタリング ステップ: | H14+F8+G4 |
| ハイライト: | controlled air velocity sampling booth,dispensing booth with pressure monitoring,air sampling booth with differential pressure |
||

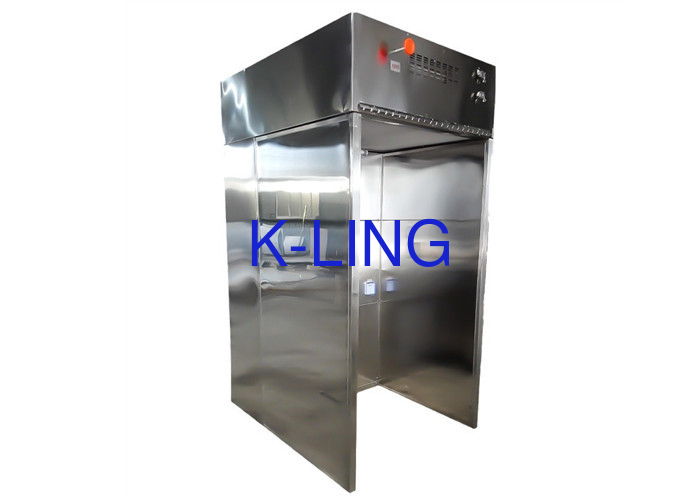

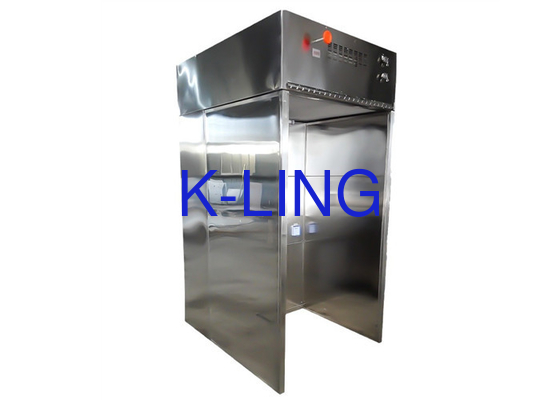

Designed to meet ISO5 / Class 100 purification rank standards, the Dispensing Booth utilizes a sophisticated filtration system consisting of H14, F8, and G4 filters. This combination of filters effectively removes contaminants and ensures clean air within the booth, meeting the strict requirements of pharmaceutical manufacturing.
The booth features a convenient PVC Strip Curtain door, allowing easy access while maintaining the integrity of the controlled environment. The door design ensures minimal air disruption when entering or exiting the booth, further enhancing the containment capabilities of the system.
Equipped with a PLC Control System, the Dispensing Booth offers precise control over environmental parameters such as airflow, pressure, and temperature. This advanced control system allows operators to monitor and adjust settings with ease, ensuring optimal working conditions for sampling activities.
Whether used for sampling of raw materials, intermediates, or final products, the pharmaceutical factory sampling booth provides a secure and controlled environment for critical processes. The combination of low noise levels, high purification rank, efficient filtration, and advanced control system makes the Dispensing Booth an indispensable tool for pharmaceutical manufacturing facilities.
| Parameter | Specification |
|---|---|
| Fan | 0.75KW 380V/480V 50/60HZ 3 Phase |
| Noise Level | ≤65dB |
| Filtration Step | H14+F8+G4 |
| Other Name | Downflow Booth |
| Application | Powder Weighing |
| HEPA Filter | Mini-pleat Type H14 |
| Purification Rank | ISO5 / Class 100 |
| Ceiling | Damping Film or Diffuser Plate |
| Door | PVC Strip Curtain |
In the medical field, cleanroom weighing rooms are commonly used in high-risk areas such as operating rooms, burn wards, and leukemia wards, serving as a critical component of infection control. For example, in operating rooms, the weighing room can be used to accurately measure sterile medications, dressings, and other materials required for surgery. Its negative pressure environment and high-efficiency filtration system prevent contamination of materials by airborne microorganisms, thereby reducing the risk of surgical infections.
In burn wards, patients' skin barriers are compromised and require extremely high environmental cleanliness. The weighing room is used to prepare special medications and treatment materials, reducing the risk of wound infection through strict air purification and protective measures. In leukemia wards, where patients have weakened immune systems, the weighing room prevents the dispersion of chemotherapy drug powders from harming medical staff during the weighing and preparation process, while also ensuring drug purity and treatment efficacy.
Additionally, in certain specialized medical procedures--such as donor processing in organ transplantation--cleanroom weighing rooms provide a reliable environment for precise weighing and sterile handling of materials.
